FoldSmart Bi Folding Speedgate
The FoldSmart Bi Folding Speedgate is designed for everyday use in a wide variety of applications. Built on the proven mechanical elements of the PDXT, the FoldSmart achieves a perfect balance of reliability and cost effectiveness. Built in battery backup and 24 programmable features ensures a user friendly solution.
FoldSmart Bi Folding Speedgate
The FoldSmart Bi Folding Speedgate is user friendly with 24 field programmable options.
Features
- Unlimited head room
- Energy efficient
- Cost effective
- Minimal footprint
- Variable frequency drive
Applications
Options
- Tailgate detection and anti-tailgate
- Traffic lights (bi-directional)
- Internal battery backup
- Pedestals
- Strobe light
- Detection loops
- Cold-weather kit
Technical Specifications
| Technical Data | FoldSmart Bi Folding Speedgate Specifications |
|---|---|
| Max Height | 10' |
| Max Width | 30' |
| Opening Speed | 8 seconds |
| Finish | Hot dip galvanized, Powder coat options |
| Power Requirements | Voltage 115-230 V, Frequency 50/60 HZ, Current 15 AMP dedicated circuits, Single Phase |
| Hydraulic Option | No |
| Battery Back-up | Standard |
Listed to UL 325 (class 1, 2, 3 & 4)
Downloads
- FoldSmart Bi Folding Speedgate XT - Brochure (PDF 0.5MB)
- FoldSmart Bi Folding Speedgate XT - Specifications (Word 0.28MB)
- FoldSmart Bi Folding Speedgate XT - Specifications (PDF)
- FoldSmart Bi Folding Speedgate XT - Drawing (PDF 2.7MB)
- FoldSmart Bi Folding Speedgate XT 2-Fold (C1)
- FoldSmart Bi Folding Speedgate XT 2-Fold (C2)
- Complete FoldSmart Reference Manual
- FoldSmart Bi Folding Speedgate XT - Specifications (PDF 0.28MB)
- FoldSmart Bi Folding Speedgate XT - CAD Drawing 1 of 6 (DWG 0.8MB)
- FoldSmart Bi Folding Speedgate XT - CAD Drawing 2 of 6 (DWG 1.7MB)
- FoldSmart Bi Folding Speedgate XT - CAD Drawing 3 of 6 (DWG 1.1MB)
- FoldSmart Bi Folding Speedgate XT - CAD Drawing 4 of 6 (DWG 1.6MB)
- FoldSmart Bi Folding Speedgate XT - CAD Drawing 5 of 6 (DWG 0.4MB)
- FoldSmart Bi Folding Speedgate XT - CAD Drawing 6 of 6 (DWG 0.5MB)
- Automatic Gate Lookbook

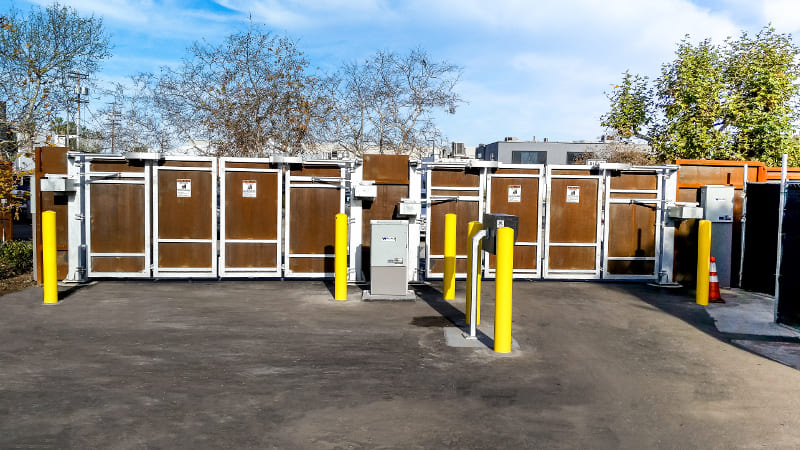

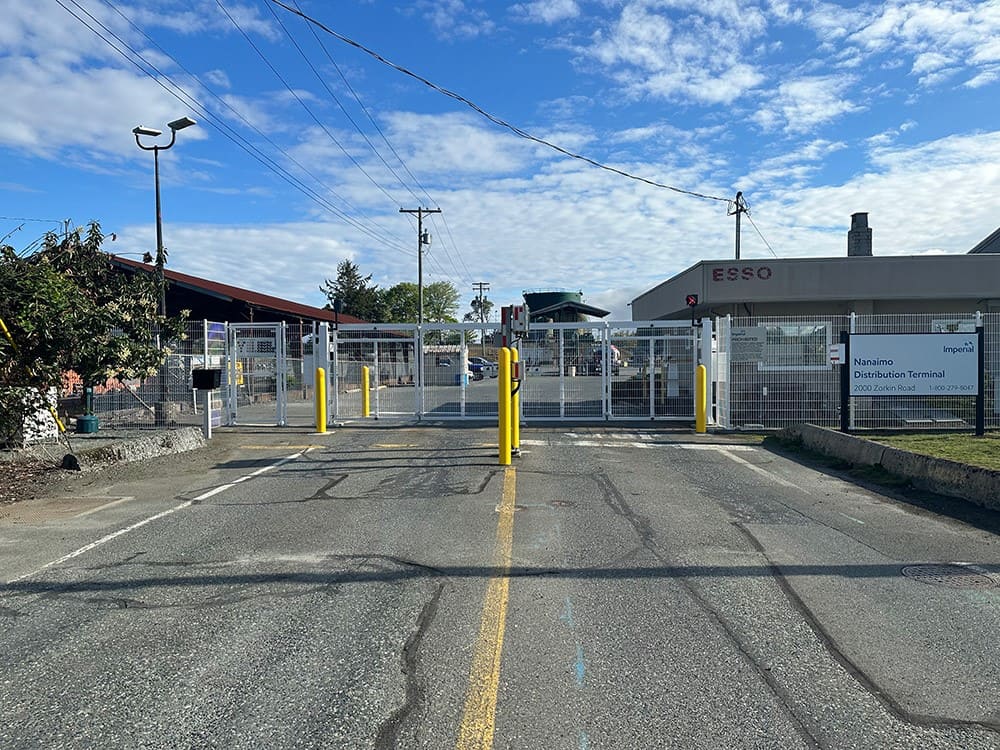

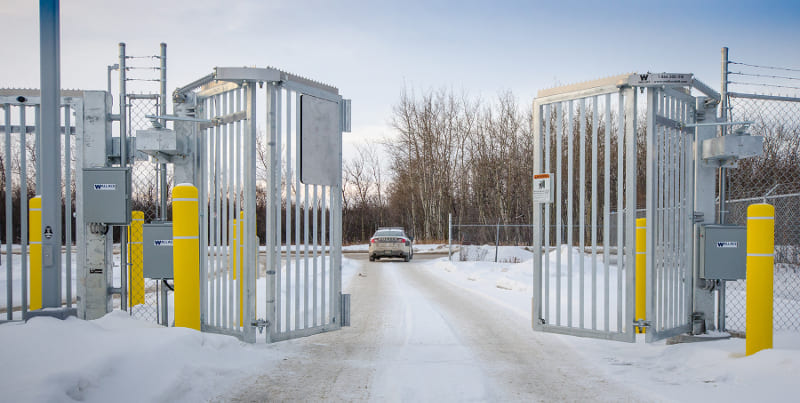

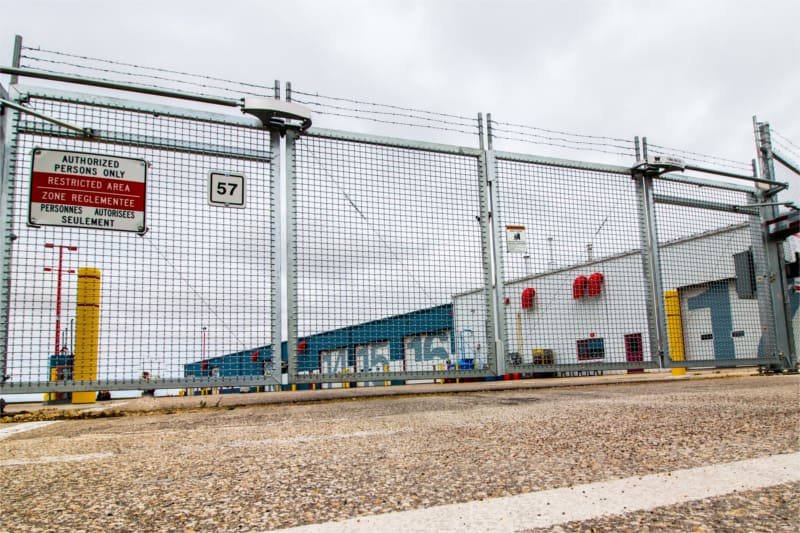

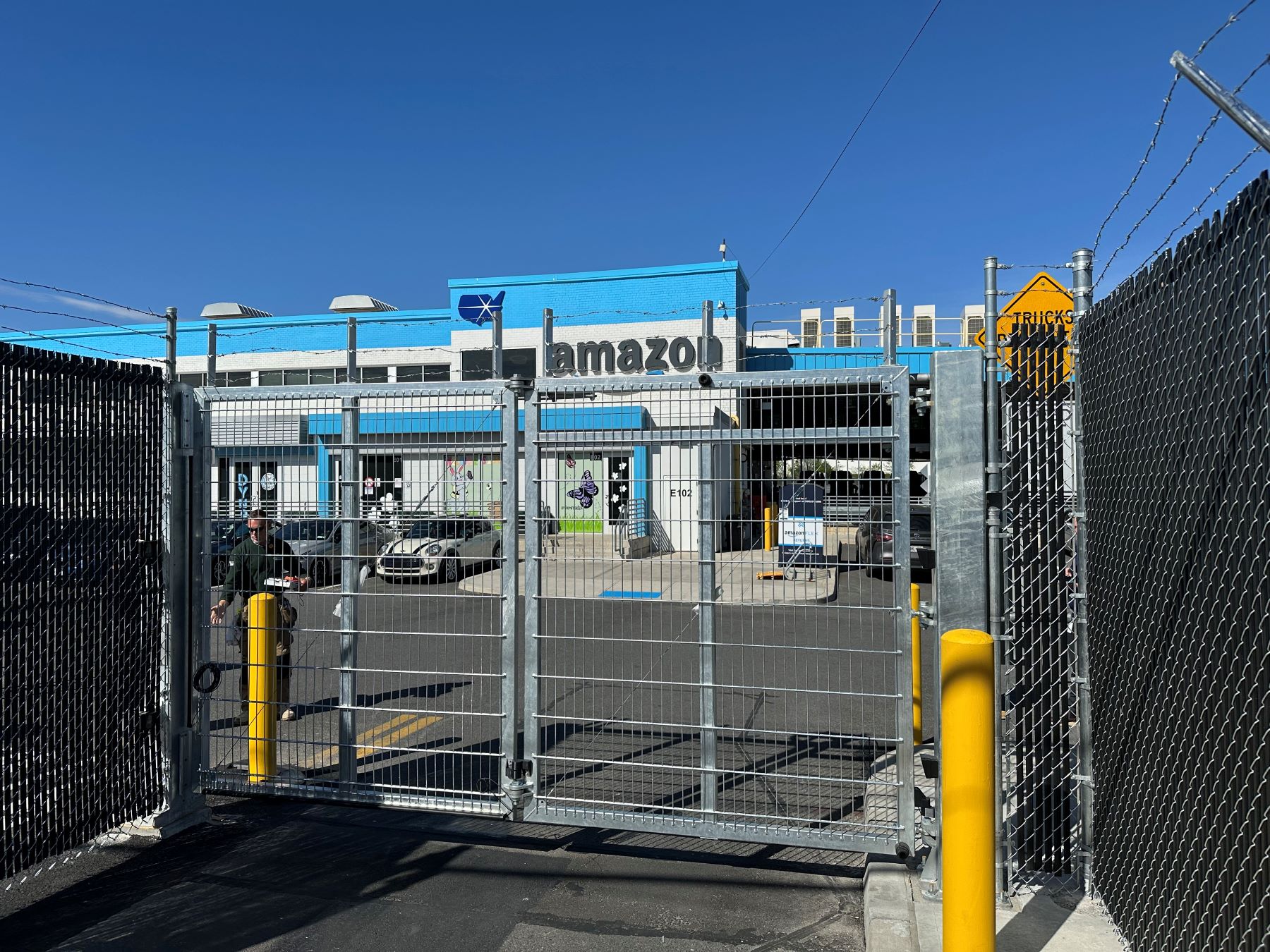

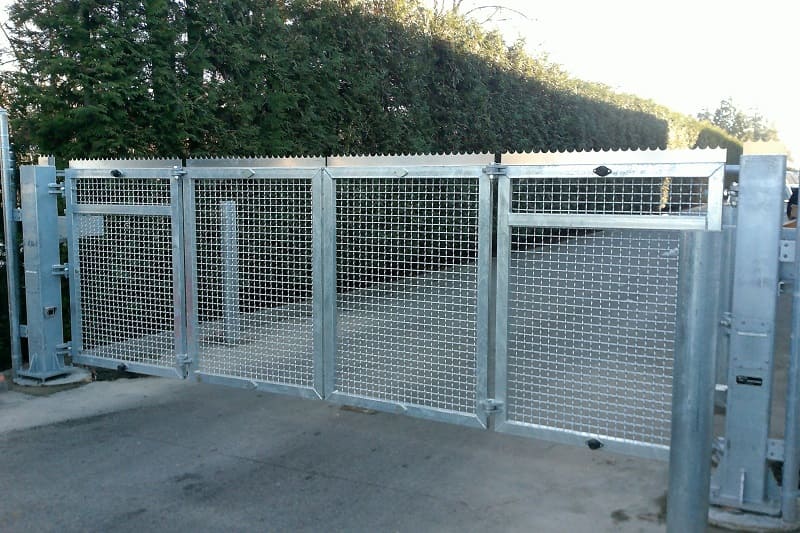

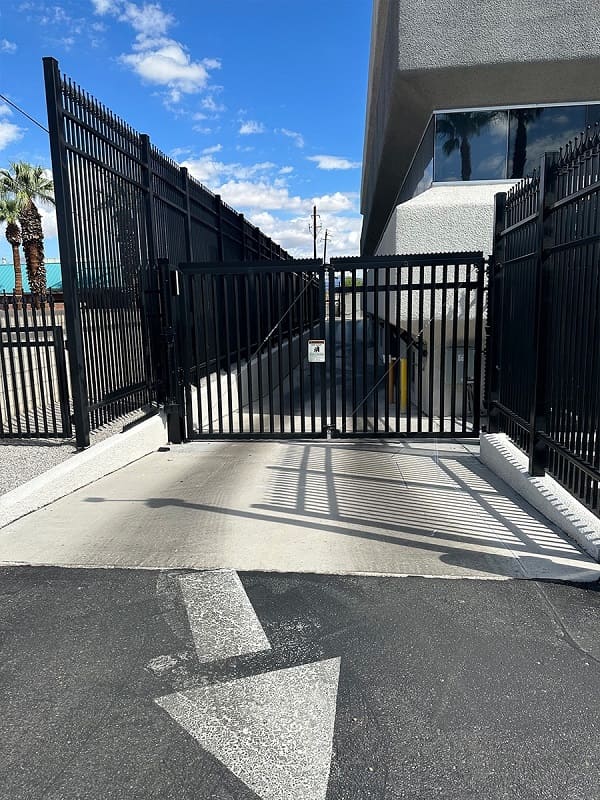

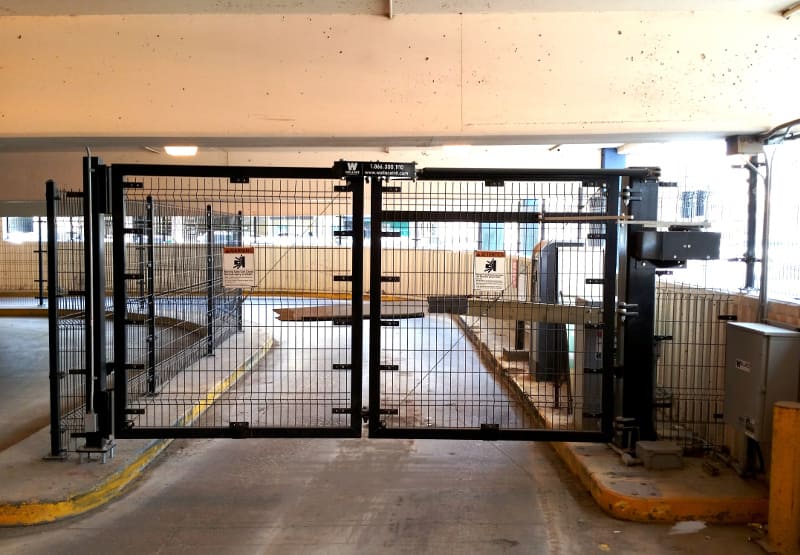

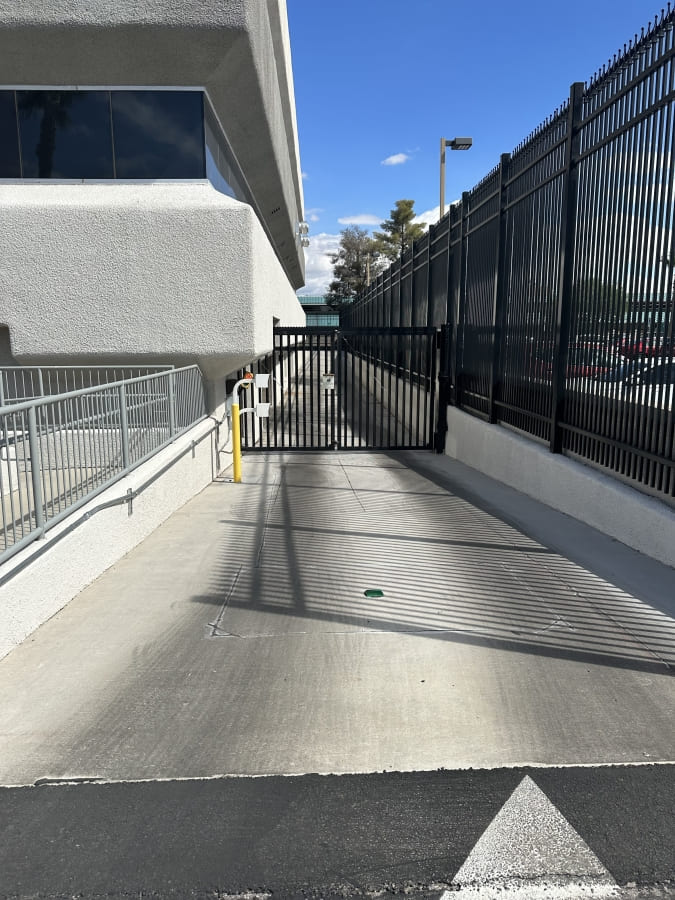

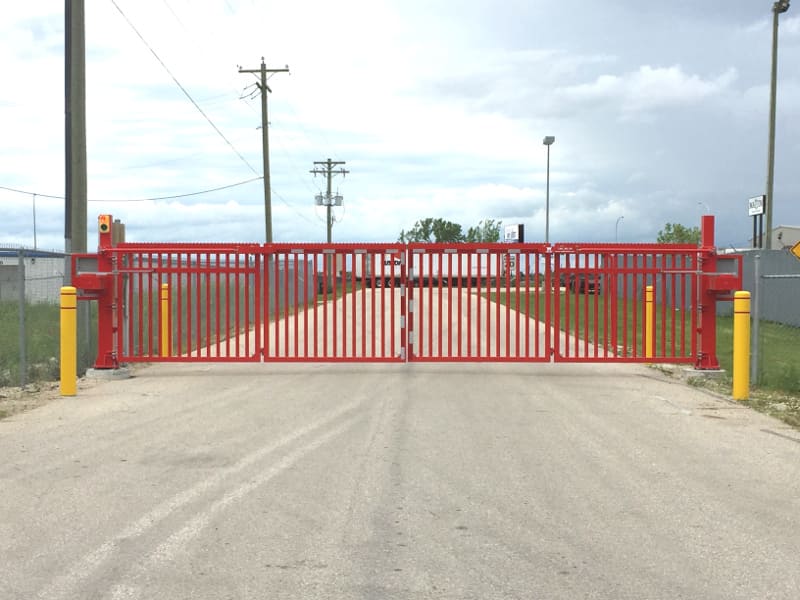

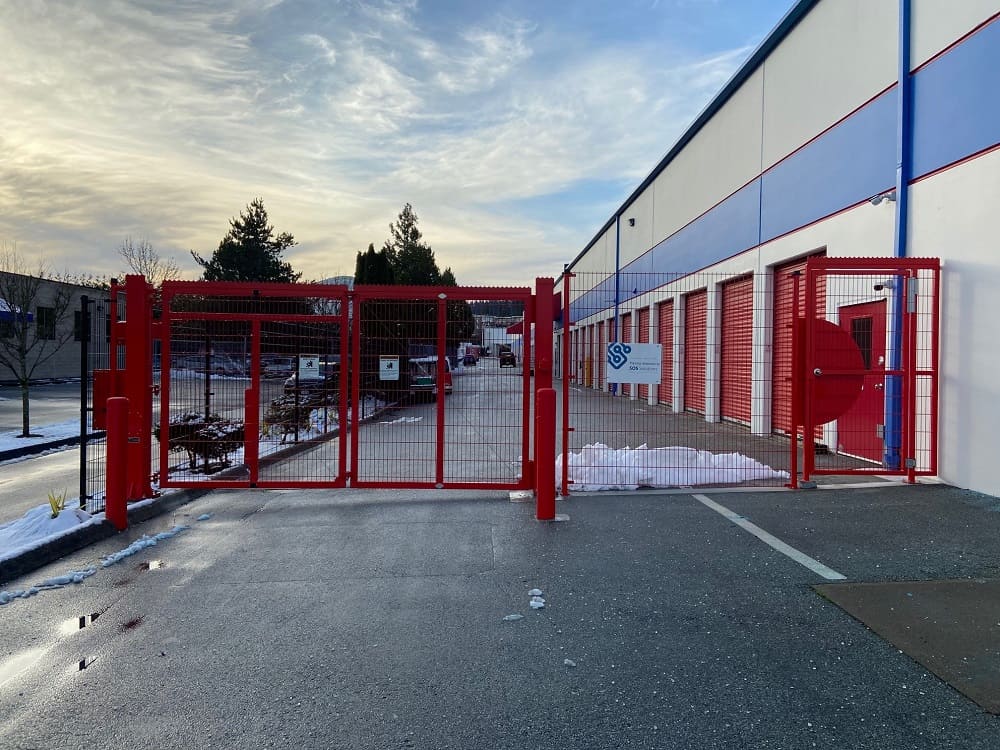

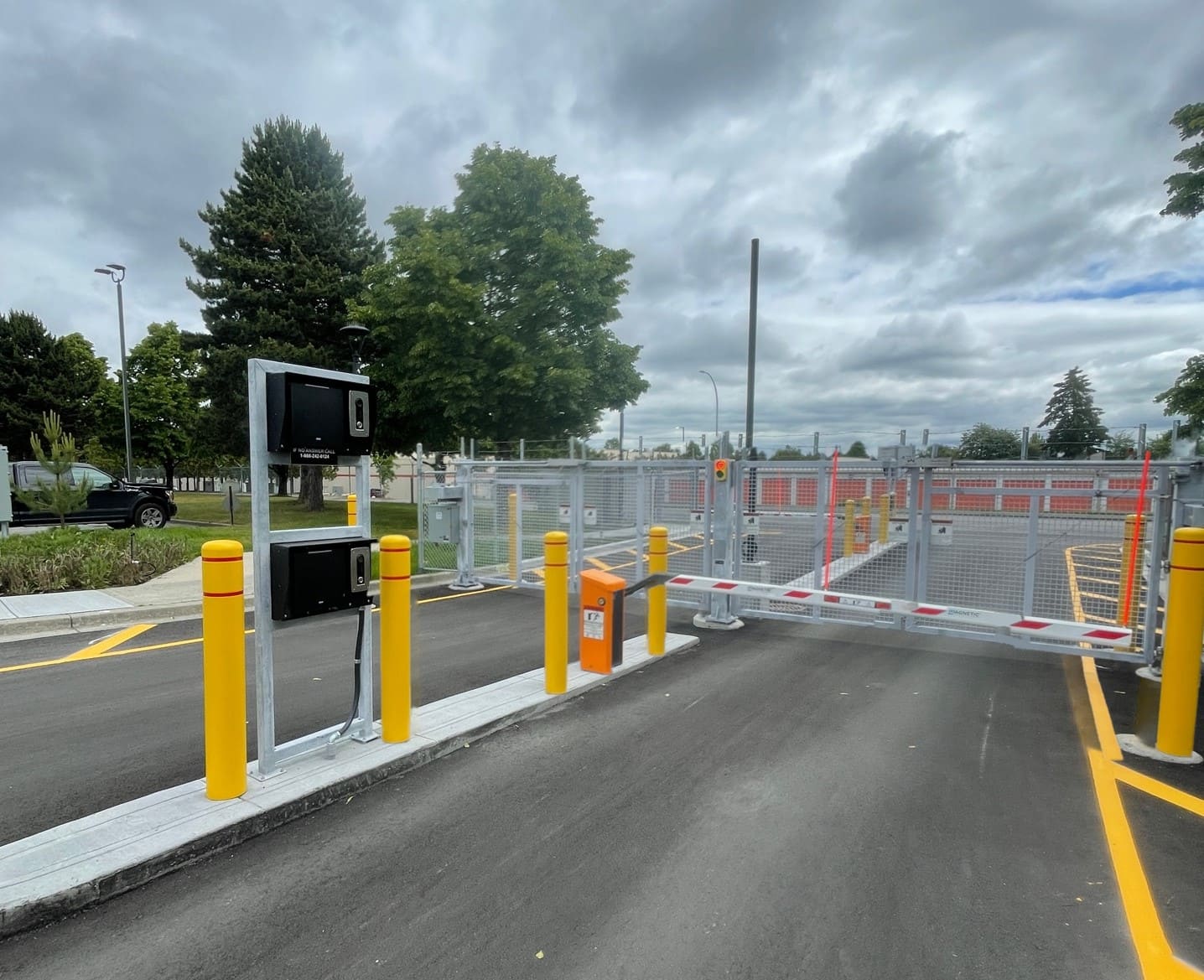

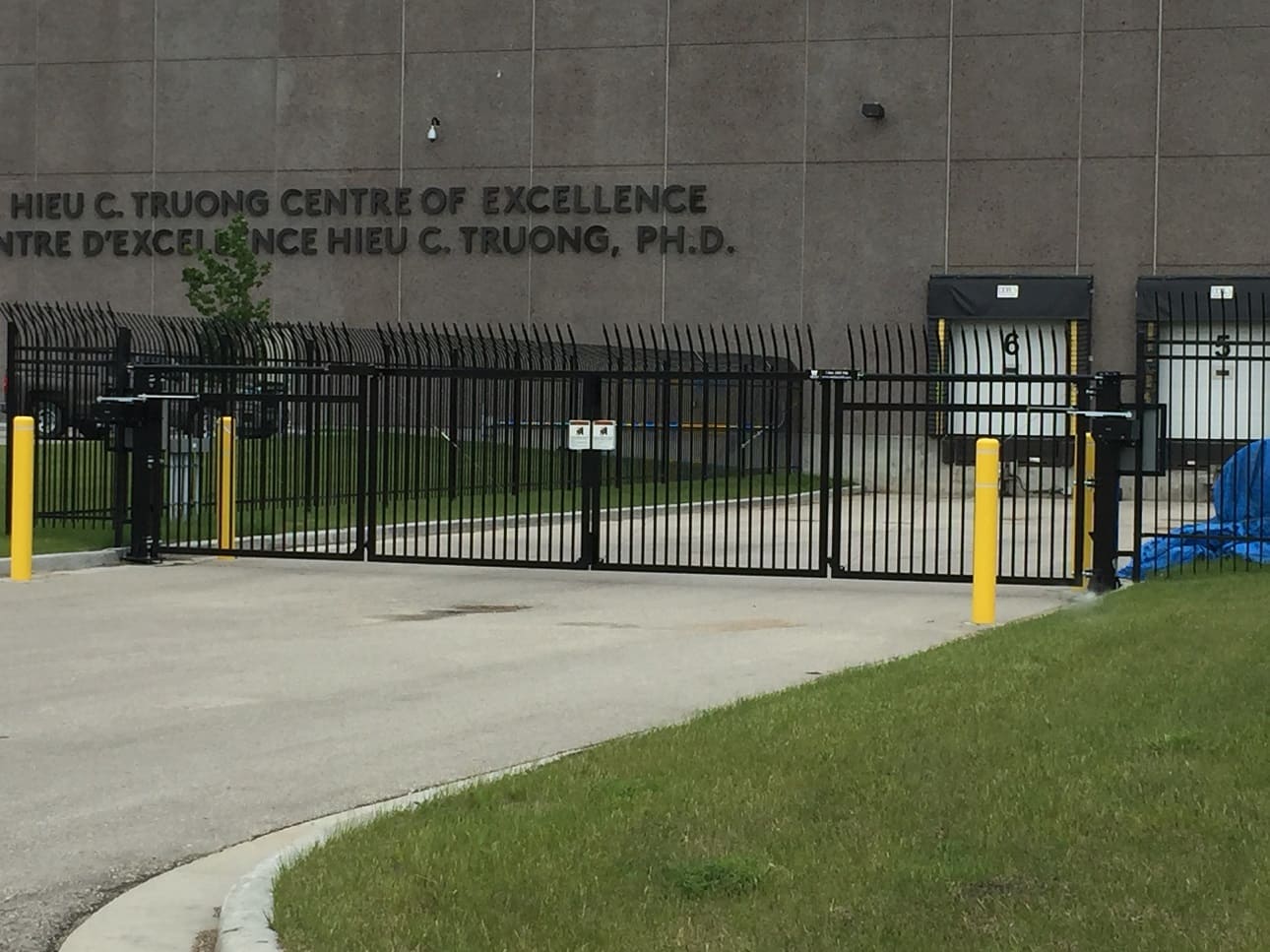

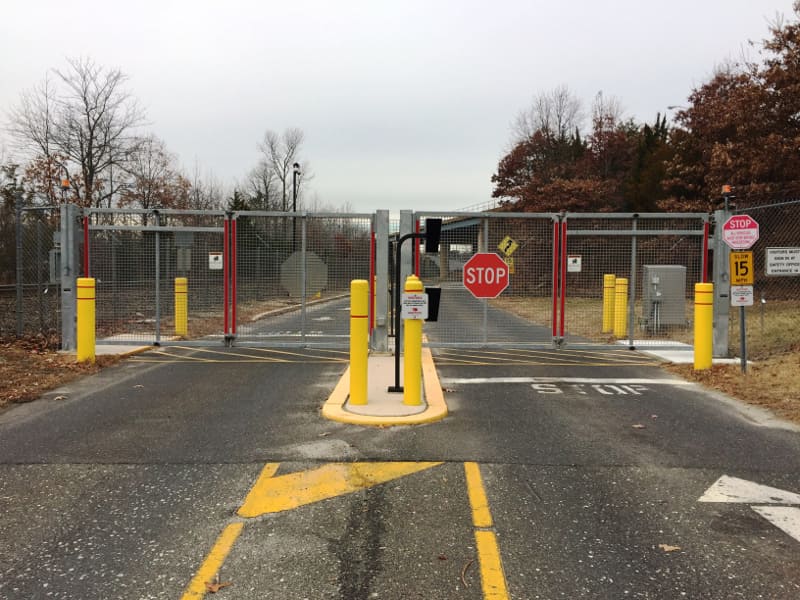

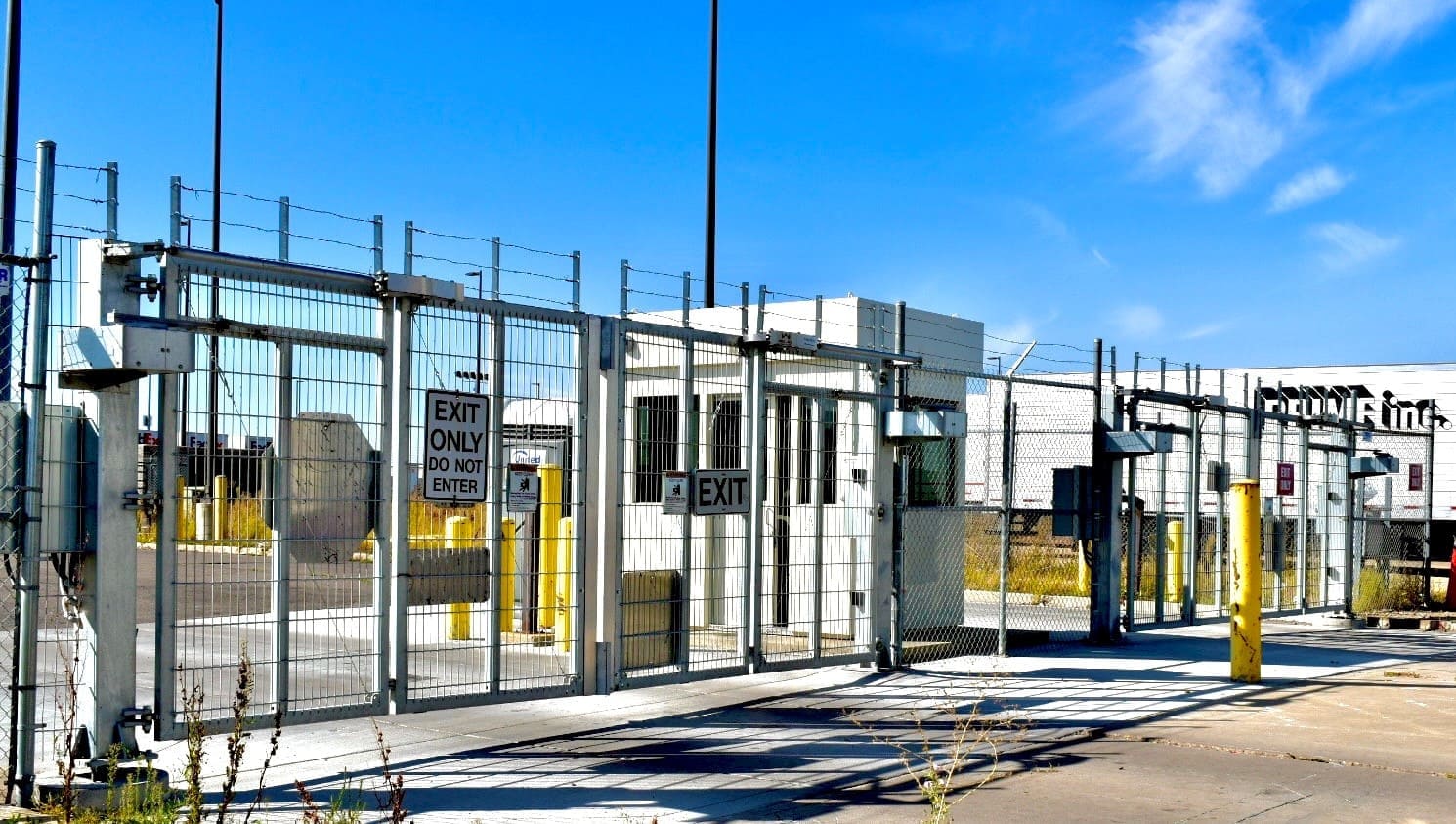

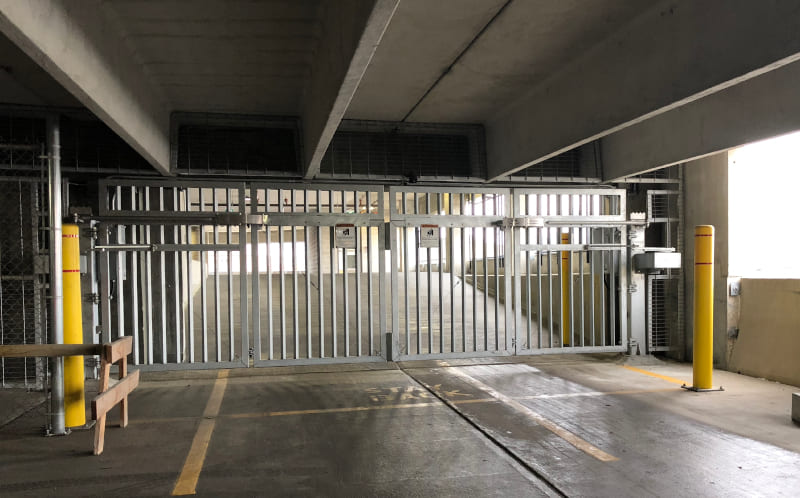

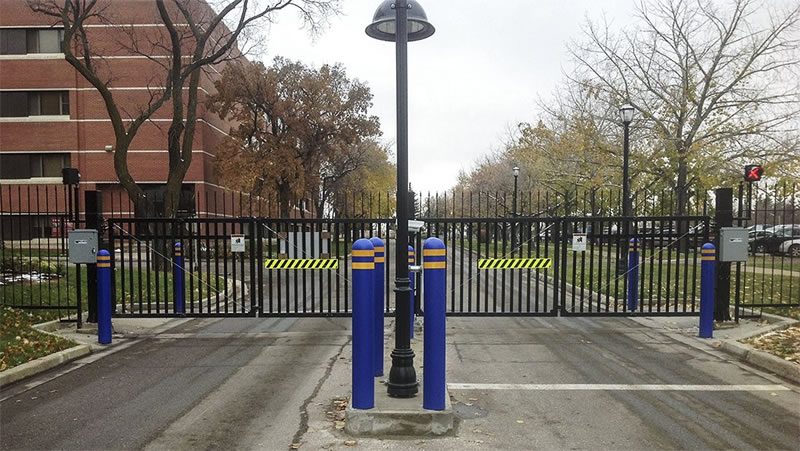

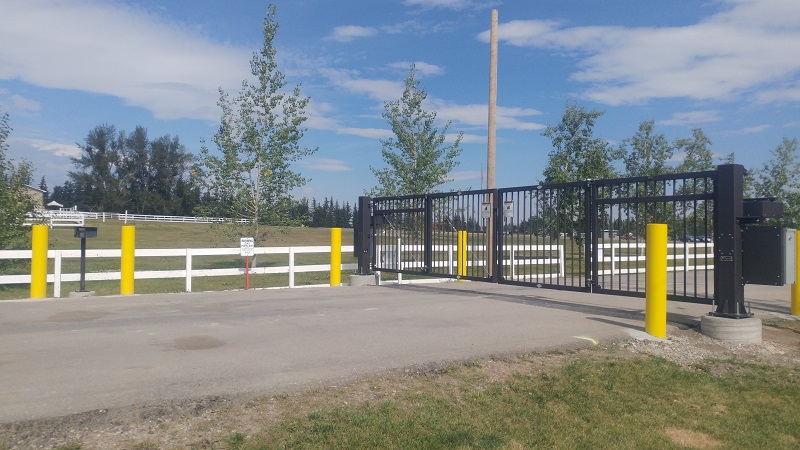

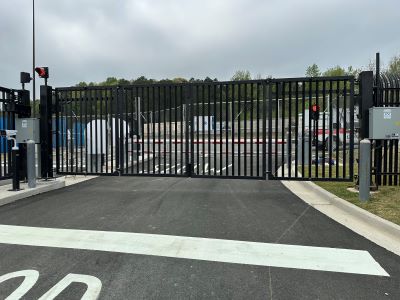

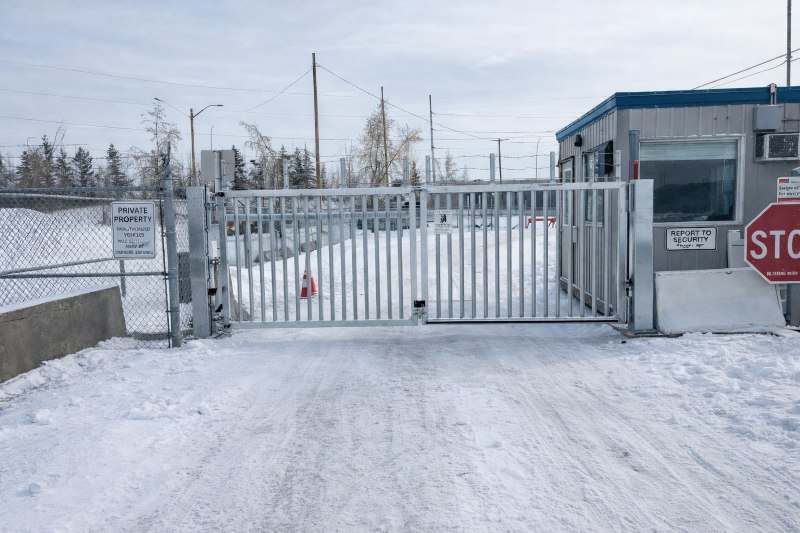

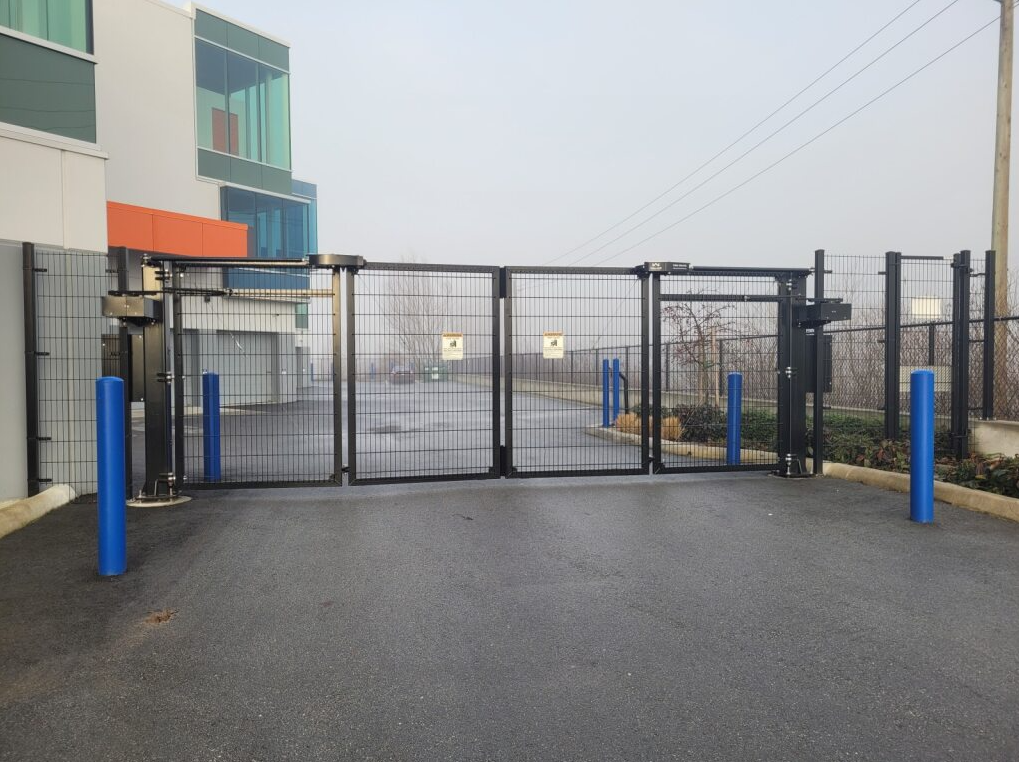

Gallery
FoldSmart Bi Folding Speedgate Videos
FoldSmart Bi Folding Speedgate Features & Benefits
FoldSmart Bi Folding Speedgate Gate
FoldSmart Bi Folding Speedgate Overview
Watch how the quick movement of the FoldSmart Bi Folding Speedgate helps move traffic in a secure and efficient manner while reducing the risk of tailgating.
FoldSmart Bi Folding Speedgate with a crash gate
Wallace Perimeter Security FoldSmart Bi Folding Speedgate paired up with a High Security crash rated barrier arm on this project.
FoldSmart Bi Folding Speedgate
Wallace Perimeter Security's FoldSmart Bi Folding Speedgate is a cost-effective, energy efficient gate solution that requires a minimal footprint and a rapid open/close time.
