Delta Cantilever Sliding Gate

The contemporary design of the Delta gate is sturdy and safe with no diagonal braces that intruders could use to climb over. The elegance of the vertical bar infill is available in a variety of colors complementing the appeal of your property.

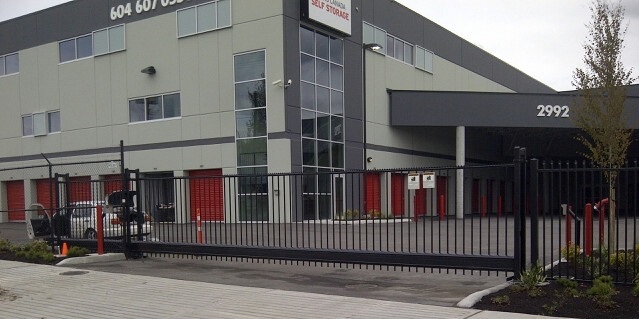

The Delta Cantilever Sliding Gate

This mix of aesthetic appeal and function can turn your entrance into a stylish and secure "calling card" for your business, providing optimum security in a visually appealing package.

The modular aluminum gate is powered by our innovative Kinetic motor. This motor is a key component, with its rack and pinion drive, providing a smooth and quiet operation. The variable-speed drive maximizes the gate hardware life, eliminating the instant start-and-stop motions of traditional, constant-speed motors.

Features

  • Rack and pinion drive
  • Concealed nylon rollers
  • Anti-climb top rail
  • Matches ornamental fence line*

Applications

  • Airports
  • Seaports
  • Commercial facilities
  • Water treatment facilities
  • Public transportation

Options

  • Traffic lights (bi-directional)
  • Pedestals
  • Strobe light
  • Vehicle detector loops/relays
  • Cold-weather kit

*Screen must be installed to be compliant with ASTM Standards/UL Standards

Technical Specifications

Technical Data Delta Specification
Infill OptionsVertical Picket
Max Height 8'
Max Width 30'
Opening Speed1' per second or 2' per second
Finish Hot dip galvanized, Powder coat options
Power Requirements Voltage 115-230 V, Frequency 50-60 HZ, Current 15 AMP dedicated circuits

ASTM F2200-02 compliant, UL 325 listed (class 1, 2, 3 & 4)

Delta Gate Video

Features and Benefits of our Delta Gate

Open Close Cycle of our Delta Gate
