PDTT Series Folding Security Speedgate
The PDTT Folding Security Speedgate is designed with security and speed in mind. Installed in North America’s highest security facilities, the top track gate has an imposing presence. The top track on the gate allows for integration of additional security devices such as, razor wire, anti-climb hardware and traffic lights.
The PDTT Folding Security Speedgate
With an open or close cycle-time of less than 7 seconds, the Bi Folding Security Speedgate ensures minimal site exposure; virtually eliminating tailgating, reducing idling time and in turn reducing emissions.
Features
- Drive motor secured inside column
- Top track for add on security
- Minimal footprint
- Variable frequency drive
Applications
- Corrections
- Police
- Courthouses
Options
- Tailgate detection and anti-tailgate
- Traffic lights (bidirectional)
- Uninterruptible power supply (UPS)
- Gate control stand
- Strobe light
- Detection loops
- Cold or hot weather kit
- Pedestals
Technical Specifications
| Technical Data | PDTT Series Folding Security Speedgate Specifications |
|---|---|
| Max Height | 16' |
| Max Width | 24' |
| Opening Speed | 7 seconds |
| Finish | Hot dip galvanized, Powder coat options |
| Power Requirements | Voltage 208-240 V, Frequency 60 HZ, Current 20 AMP dedicated circuits, Single phase |
| Battery Back-up | Add on |
Listed to UL 325 (class 1, 2, 3 & 4)
Downloads
- PDTT Folding Security Speedgate - Brochure (PDF 0.5MB)
- WPS SpeedGate PDTT Specifications Rev 01-15-25 [PDF document]
- WPS SpeedGate PDTT Specifications Rev 01-15-25 [Word document]
- PDTT Folding Security Speedgate - Drawing (PDF 1MB)
- Complete PDTT Folding Security Speedgate Reference Manual-REV 1.5
- Service Bulletin - REMOVE All Motor Plugs Before Running Gate
- PDTT Folding Security Speedgate - Installation Guide
- PDTT Folding Security Speedgate - CAD Drawing 1 of 6 (DWG 2.35MB)
- PDTT Folding Security Speedgate - CAD Drawing 2 of 6 (DWG 4.49MB)
- PDTT Folding Security Speedgate - CAD Drawing 3 of 6 (DWG 2.09MB)
- PDTT Folding Security Speedgate - CAD Drawing 4 of 6 (DWG 1.95MB)
- PDTT Folding Security Speedgate - CAD Drawing 5 of 6 (DWG 1.57MB)
- PDTT Folding Security Speedgate - CAD Drawing 6 of 6 (DWG 0.12MB)
- Automatic Gate Lookbook

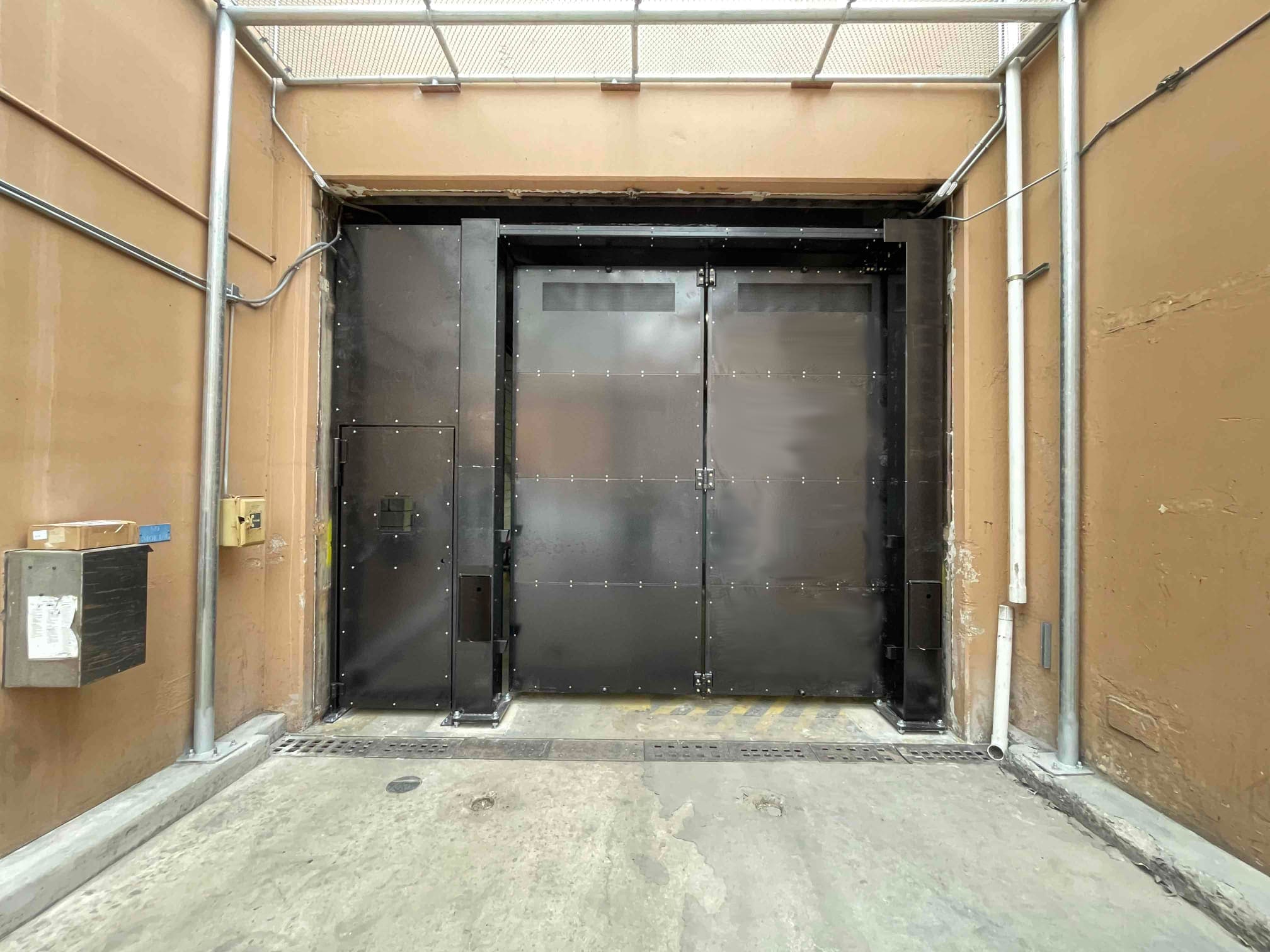

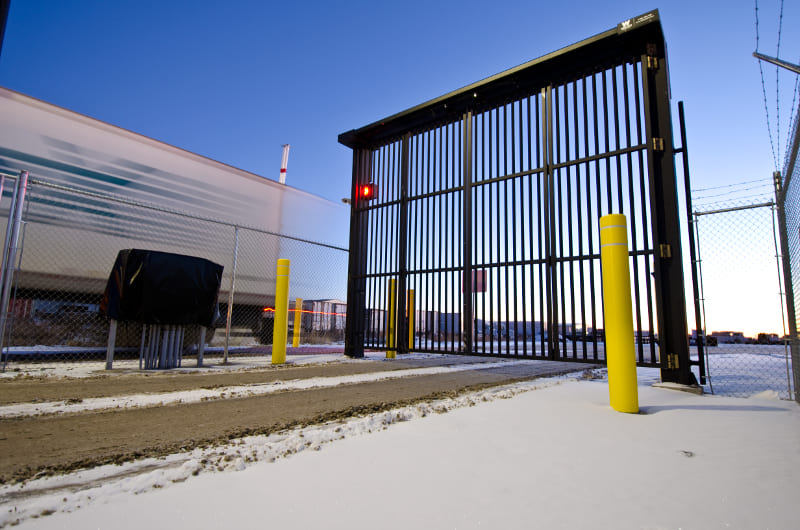

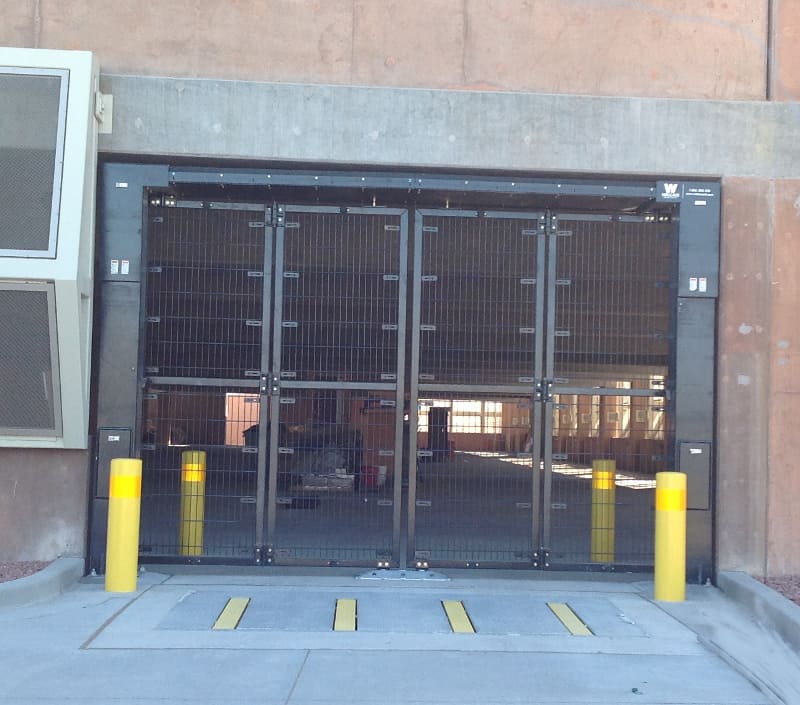

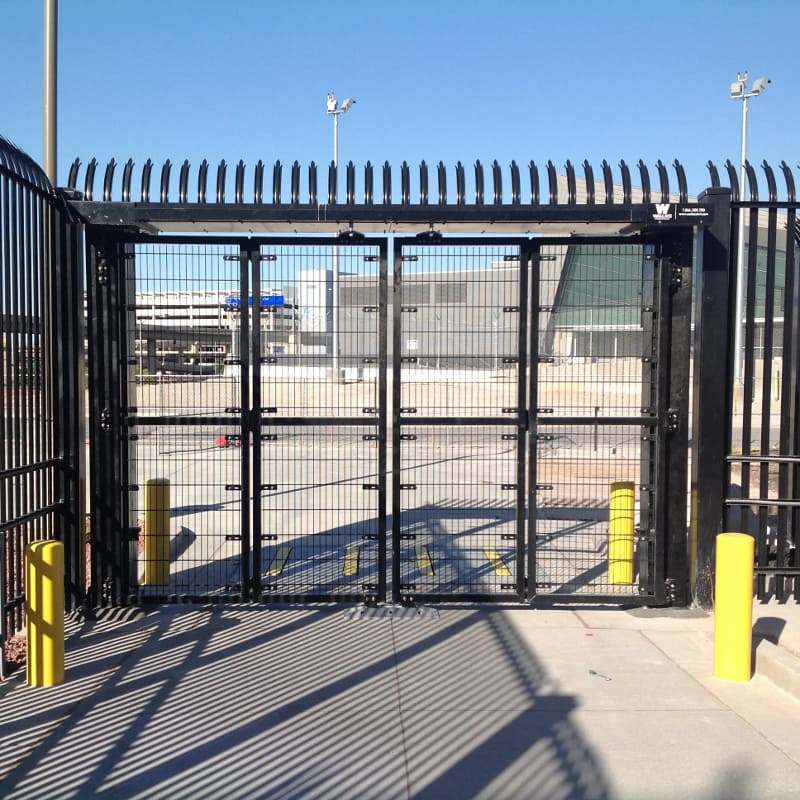

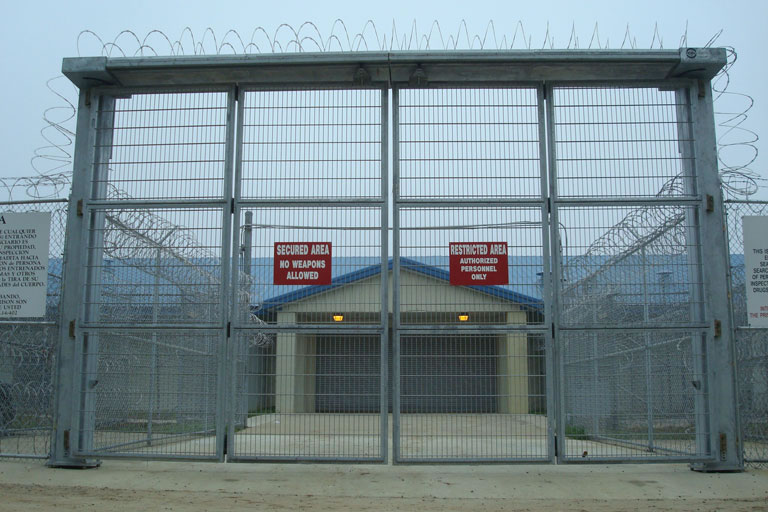

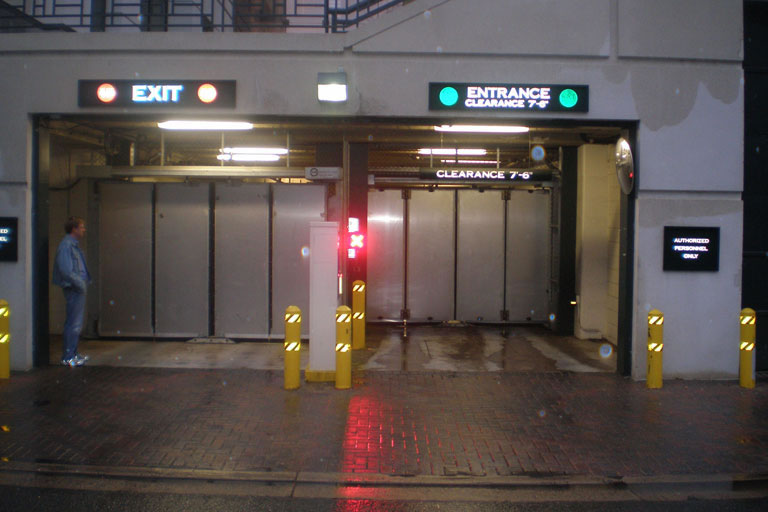

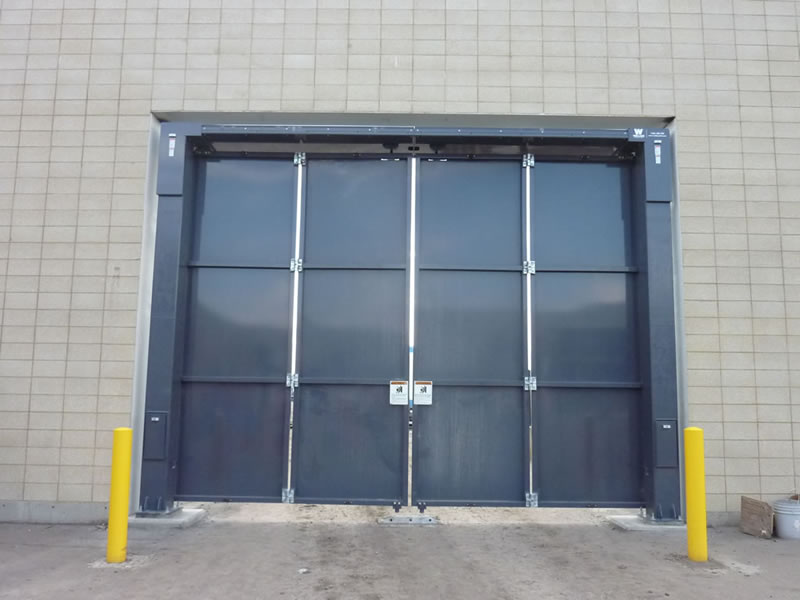

Gallery
PDTT Series Folding Security SpeedgateVideos
PDTT Folding Security Speedgate Top Track
The Top Track Folding Security Speedgate has an open or close cycle-time of less than 7 seconds. This ensures minimal site exposure; virtually eliminating tailgating, reducing idling time and in turn reducing emissions.
