Alpha Cantilever Sliding Gate
The Alpha Cantilever Sliding Gate combines optimum quality and security. Strong and clever, this smoothly running gate is available with a variety of infill options, including chain-link and welded wire.
The Alpha Cantilever Sliding Gate
The Alpha Cantilever Sliding Gate, manufactured with an internal tensioned aluminum beam, is known for its engineered strength and durability. Wallace Perimeter Security has designed the chain-linked Alpha Gate to provide strength, security and protection in high traffic commercial applications.
The modular aluminum gate is powered by our innovative Kinetic motor. This motor is a key component, with its rack and pinion drive, providing a smooth and quiet operation. The variable-speed drive maximizes the gate hardware life, eliminating the instant start-and-stop motions of traditional, constant-speed motors.
Features
- Rack and pinion drive
- Concealed nylon rollers
- Anti-climb top rail
Applications
- Airports
- Seaports
- Commercial facilities
- Water treatment facilities
- Public transportation
Options
- Traffic lights (bi-directional)
- Pedestal
- Strobe light
- Vehicle detector loops/relays
- Cold-weather kit
Technical Specifications
| Technical Data | Alpha Specification |
|---|---|
| Infill Options | Chain link, Welded wire |
| Max Height* | 8' |
| Max Width | 30' |
| Opening Speed | 1' per second or 2' per second |
| Finish | Hot dip galvanized/ mill 1 finish aluminum, Powder coat options |
| Power Requirements | Voltage 115-230 V, Frequency 50-60 HZ, Current 15 AMP dedicated circuits |
ASTM F2200-02 compliant, UL 325 listed (class 1, 2, 3 & 4)
* 1 foot high (3 rows) barbed wire comes standard on all height and width combinations.
Downloads
- Alpha Cantilever Sliding Gate - Brochure (PDF 0.6MB)
- Alpha Cantilever Sliding Gate - Specifications (Word 91KB)
- Alpha Cantilever Sliding Gate - Specifications (PDF)
- Alpha Cantilever Sliding Gate - Drawing (PDF 0.84MB)
- Alpha Cantilever Sliding Gate - Double Drawing (PDF 1.6MB)
- Alpha Cantilever Sliding Gate / Kinetic Installation & Maintenance Manual (PDF 2MB)
- Alpha Cantilever Sliding Gate Mechanical Manual
- Alpha Cantilever Sliding Gate - CAD Drawing 1 of 5 (DWG 2.5MB)
- Alpha Cantilever Sliding Gate - CAD Drawing 2 of 5 (DWG 0.6MB)
- Alpha Cantilever Sliding Gate - CAD Drawing 3 of 5 (DWG 0.7MB)
- Alpha Cantilever Sliding Gate - CAD Drawing 4 of 5 (DWG 2.3MB)
- Alpha Cantilever Sliding Gate - CAD Drawing 5 of 5 (DWG 4.8MB)
- Alpha Cantilever Sliding Gate Kinetic Drive System Brochure
- Automatic Cantilever Sliding Gate Lookbook

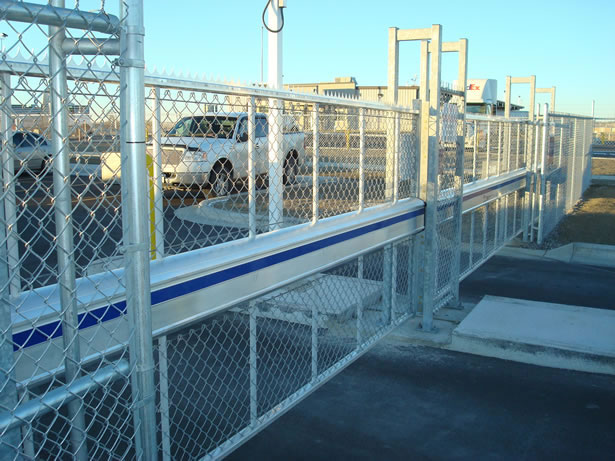

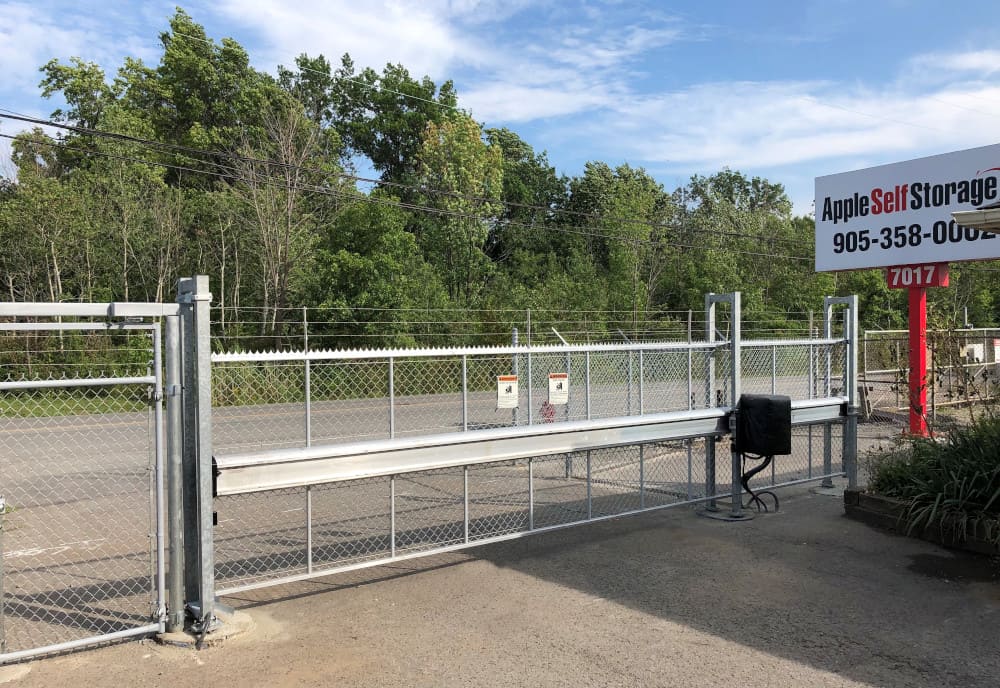

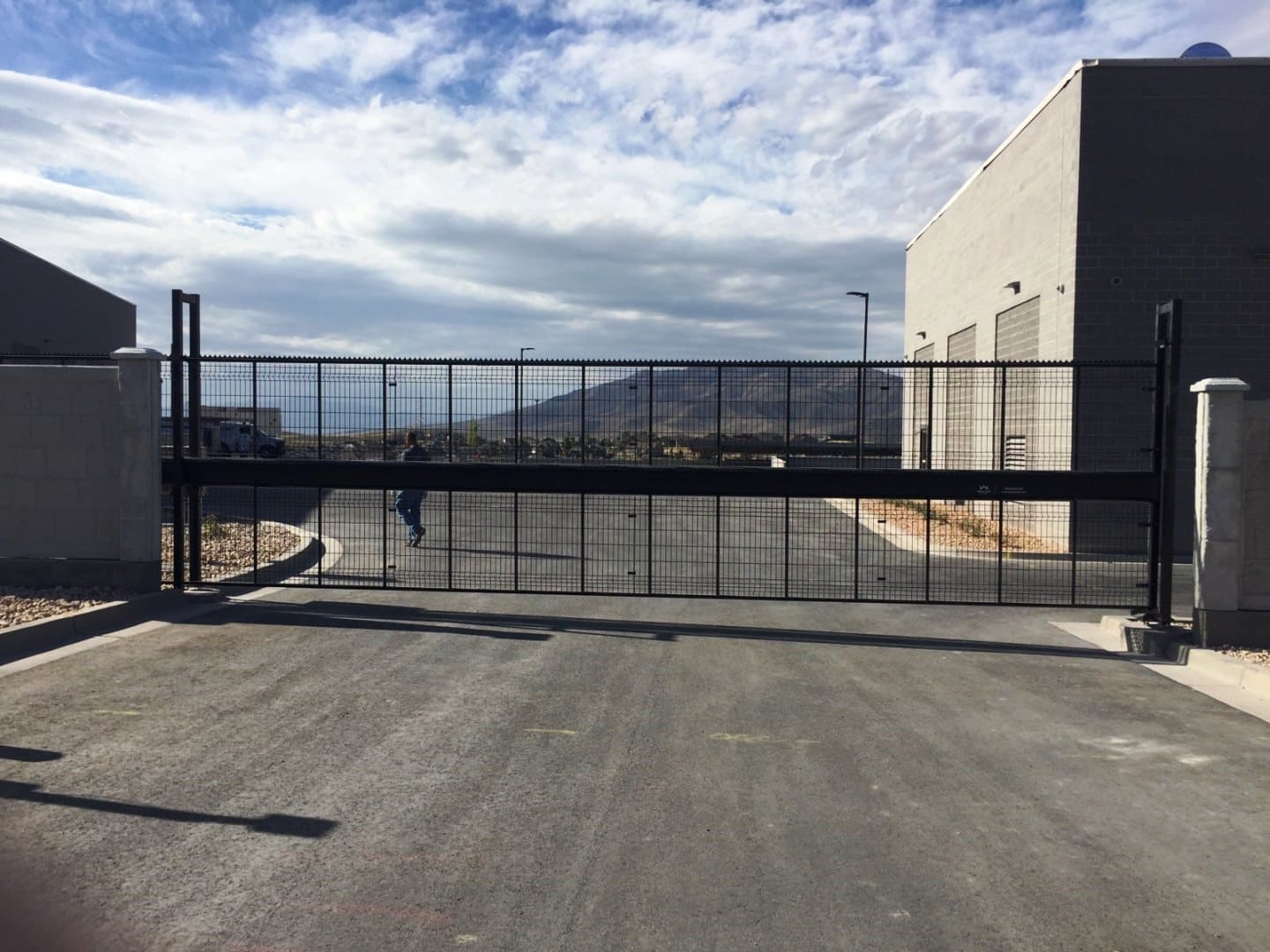

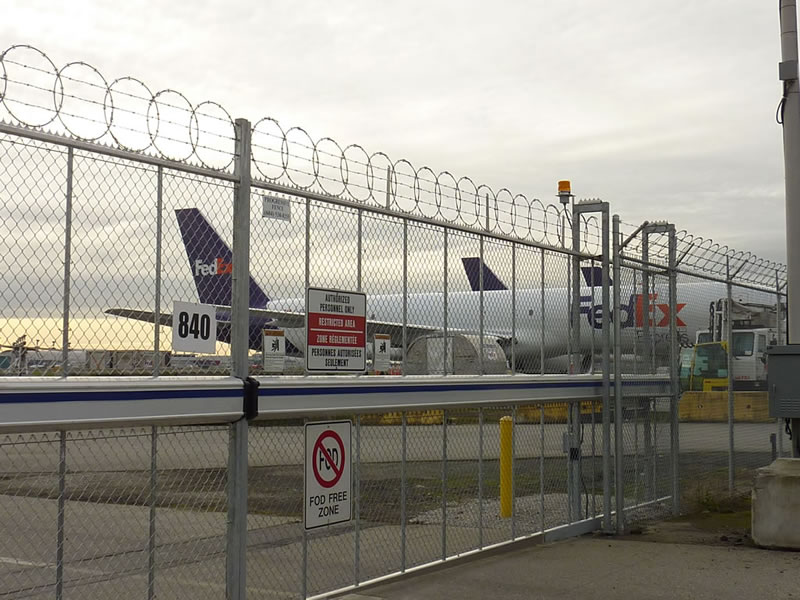

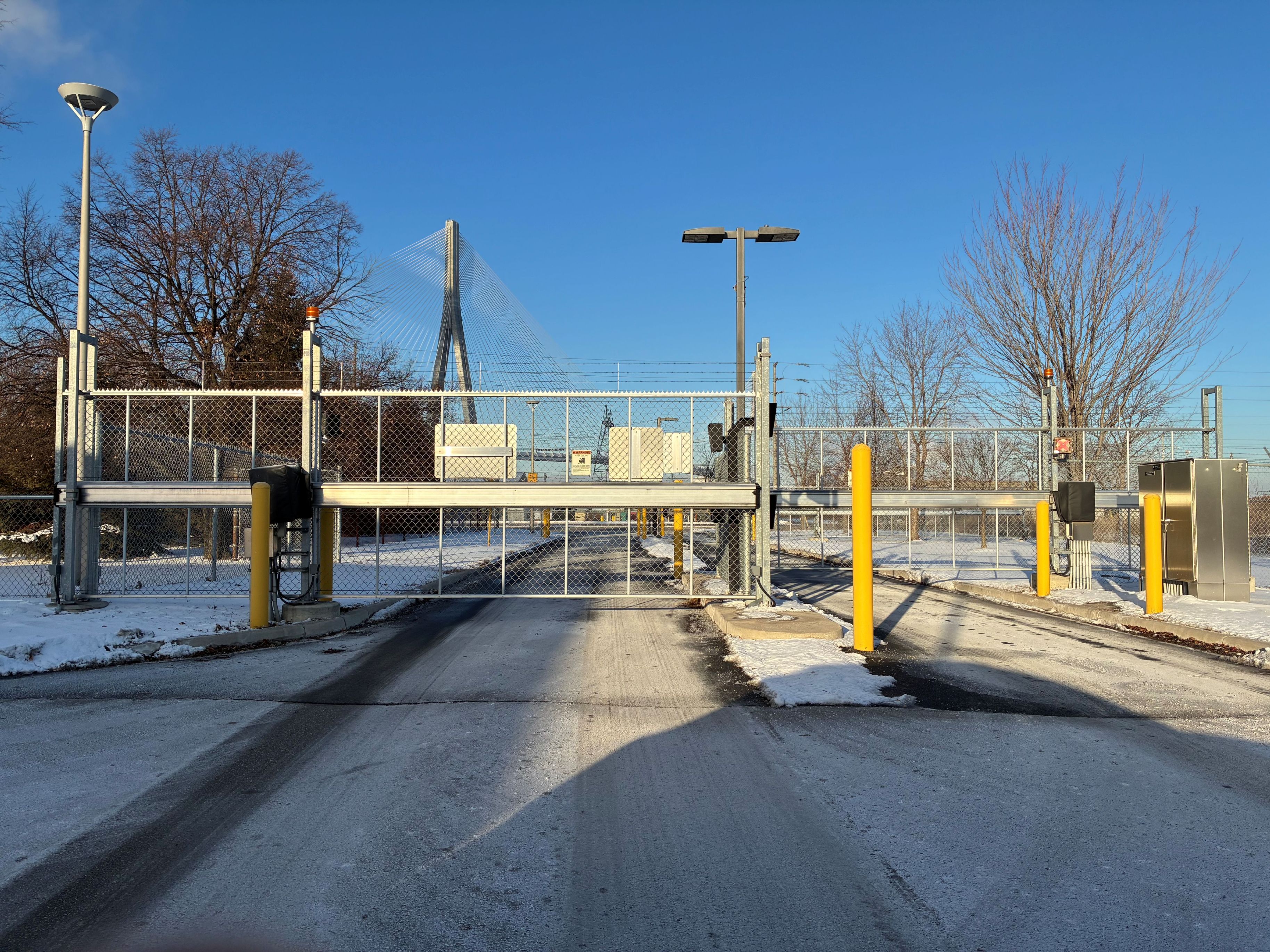

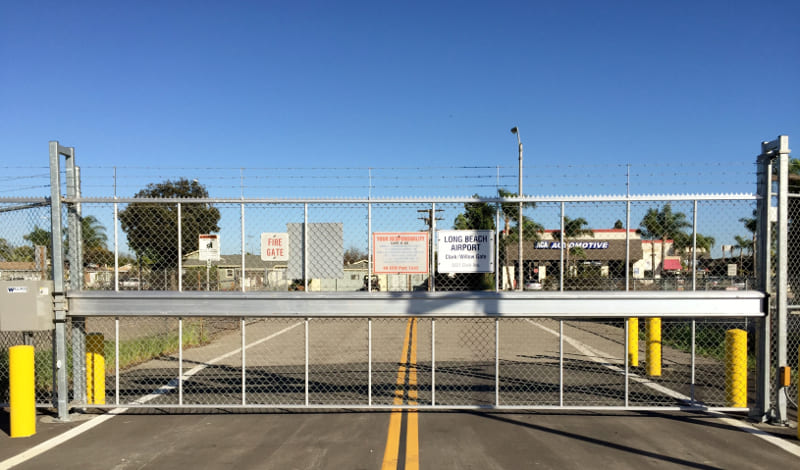

Gallery
Alpha Cantilever Sliding Gate Videos
The Alpha Cantilever Sliding Gate is designed to close single openings of up to 80 feet and the system is UL 325 listed. The modular construction allows for efficient delivery time and ensures that it is easy to unload on site. The gate comes with mounting posts and all required hardware. The Alpha gate stands out from other sliding gates with its integrated rack and pinion drive.
Features and Benefits of our Alpha Cantilever Sliding Gate.
Open and close cycle of our Alpha Cantilever Sliding Gate.
Close up of our rack and pinion drive system
Alpha Cantilever Sliding Gate withstands ramming attack.
Wallace Perimeter Security Alpha Cantilever Sliding Gate
