Rampart 358 - Security
Rampart 358 - Security Fencing
RAMPART 358 fence panels provide an extraordinary high security solution. The small mesh openings make Rampart 358 nearly impossible to scale and very difficult to cut. For more information on recommended brackets and posts please reference the Hardware tab.
Recommended Application
- Airports
- Jails/Prisons
- High risk areas
Technical Specifications
| Technical Data | Rampart 358 Specification |
|---|---|
| Mesh Opening | 3" x .5" (76.2 mm x 12.7 mm) |
| Gauge of Horizontal Wire | 1 x 8 GA (4 mm) |
| Gauge of Vertical Wire | 1 x 8 GA (4 mm) |
| Standard Height | 4', 6', 8' (1235.9 mm, 1832.8 mm, 2429.7 mm) |
| Standard Length | 8'3" (2518 mm) |
| Finish | Powder Coat |
Hardware
Depending on the project requirements, Wallace offers a variety of brackets and posts to fit every requirement. Please contact us if you need any assistance on selecting the best option for your project.
Post Options
- 2 1/2" x 2 1/2" Square Post (6' and under only)
- 3" x 3" Square Post

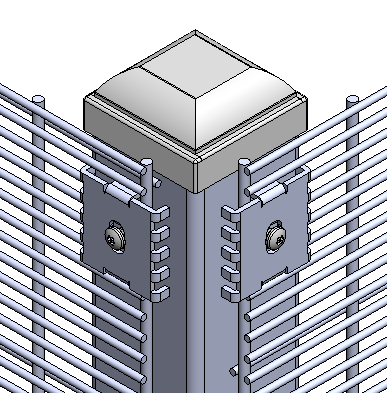

Bracket Options
- Spider Bracket: Standard for 2 1/2" and up. For line/end post with straight line panels or 90 degree interior angle (double bracket post support is necessary for this option).
- Defender Bracket: This fence system is easy to assemble and provides an exceptional security solution. The special U-bracket system with carriage bolts and shear nuts make installation seamless and flexible. A firm full height shield bracket makes the fence difficult to sabotage. Please contact us for post sizes.
Downloads

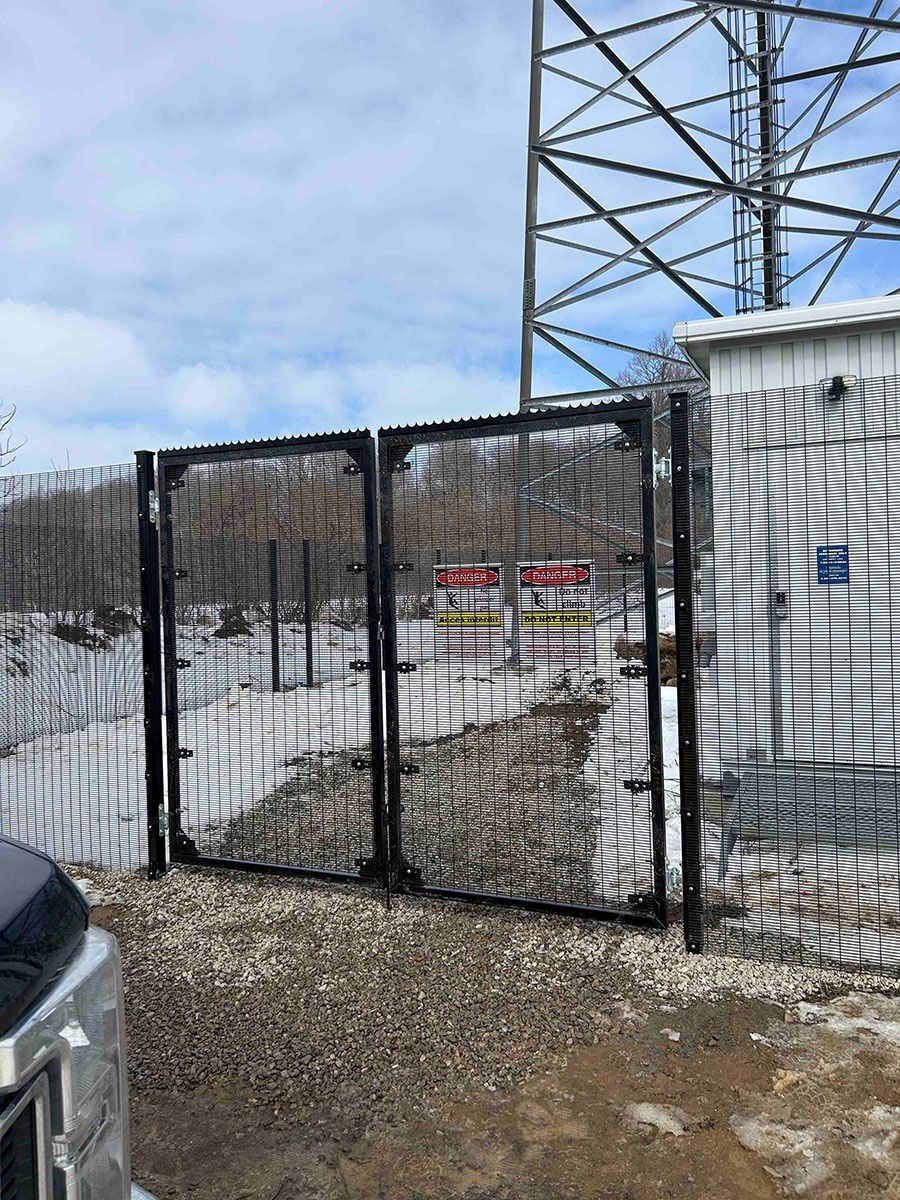

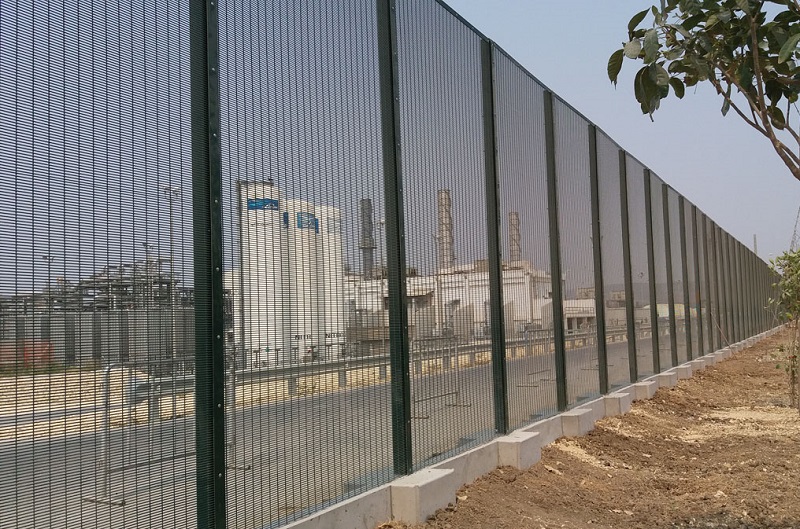

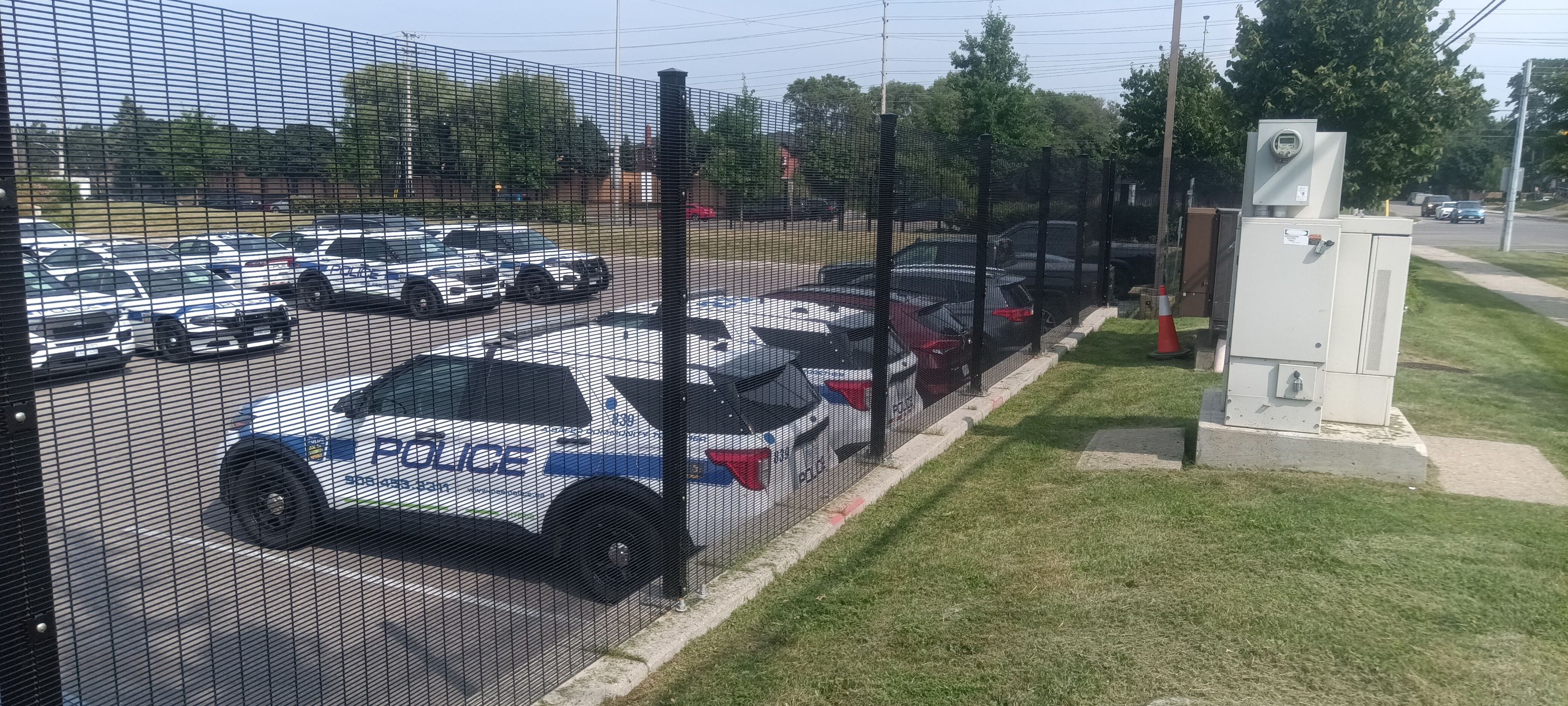

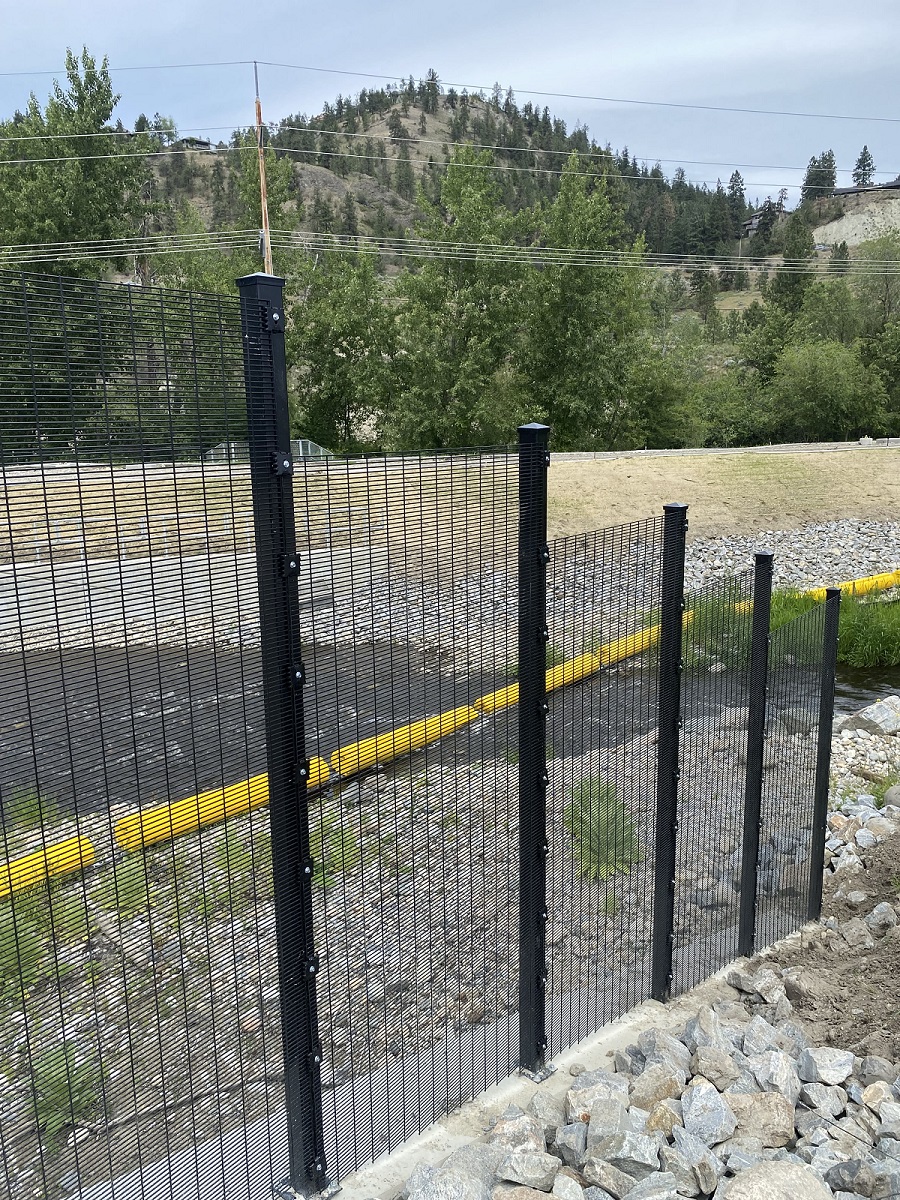

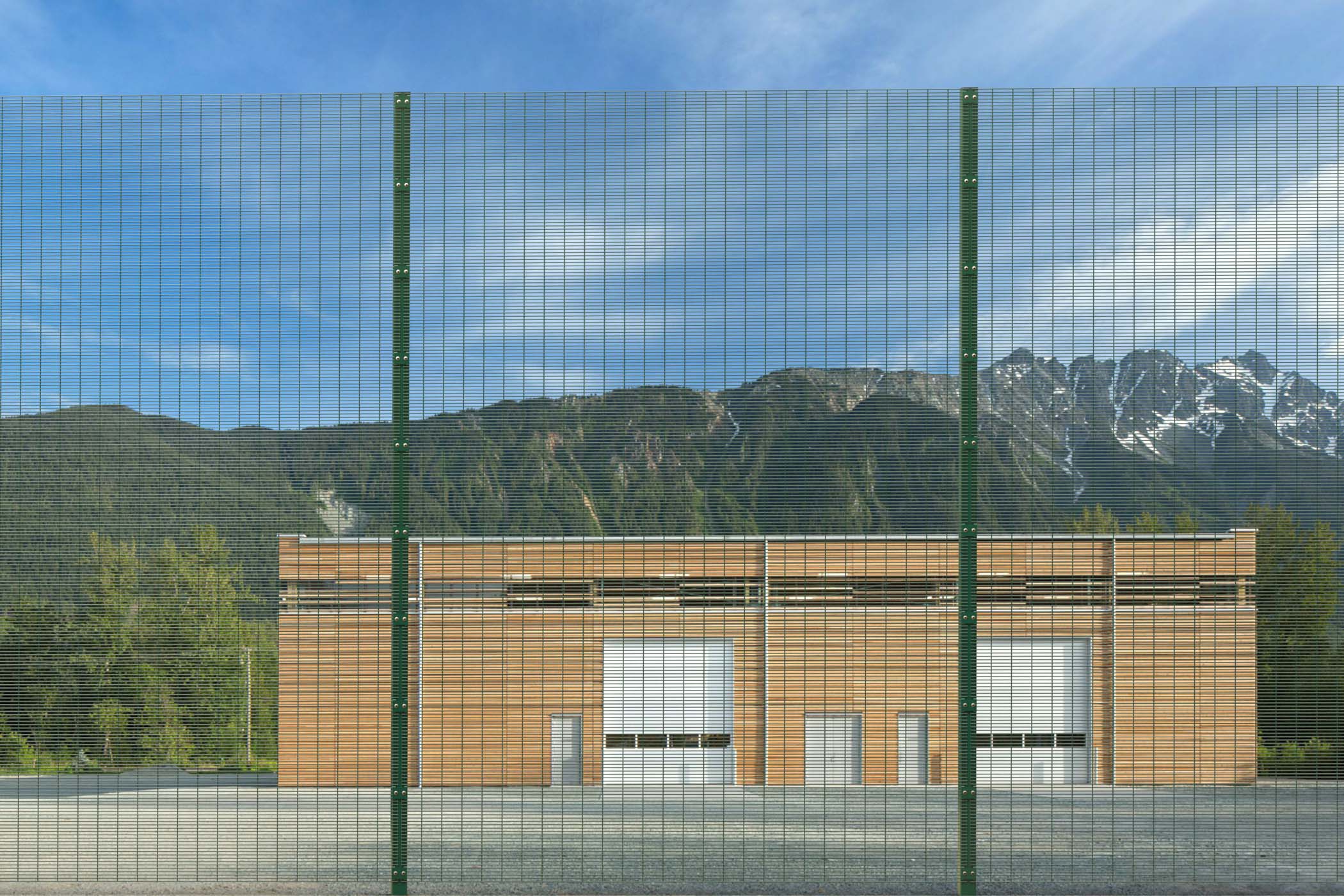

Gallery
Watch this video to see for yourself the security benefits of Rampart Welded Wire over Chain-Link.
