PDXT Series Bi-Fold Speedgate
The most robust and adaptable Bi-Fold Speedgate available. From elegant to bullet proof, the infill can be customized to serve the application. If you have demanding requirements for speed, security and aesthetics, then the PDXT Bi-Fold Speedgate is the perfect choice.
The PDXT Series Bi-Fold Speedgate
With an open or close cycle-time of less than 7 seconds, the bi-fold SpeedGate ensures minimal site exposure; virtually eliminating tailgating, reducing idling time and in turn reducing emissions.
Features
- Unlimited head room
- Drive motor secured inside column
- Minimal footprint
- Variable frequency drive
Applications

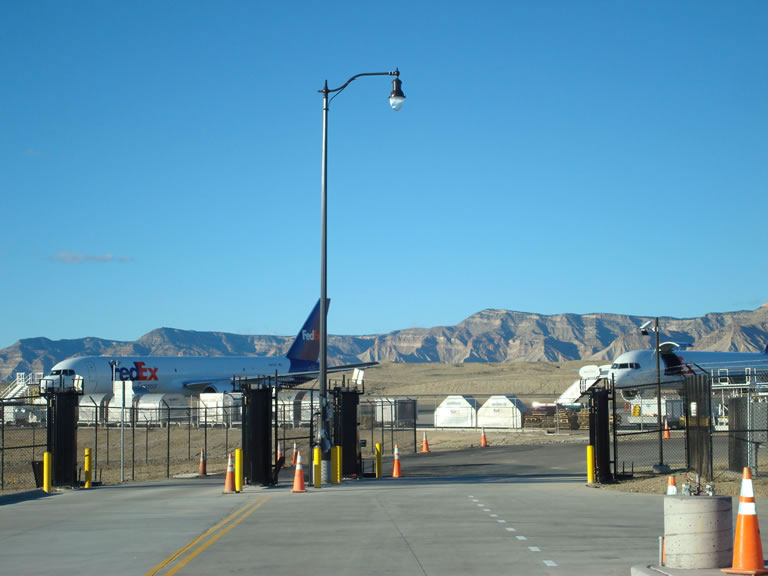

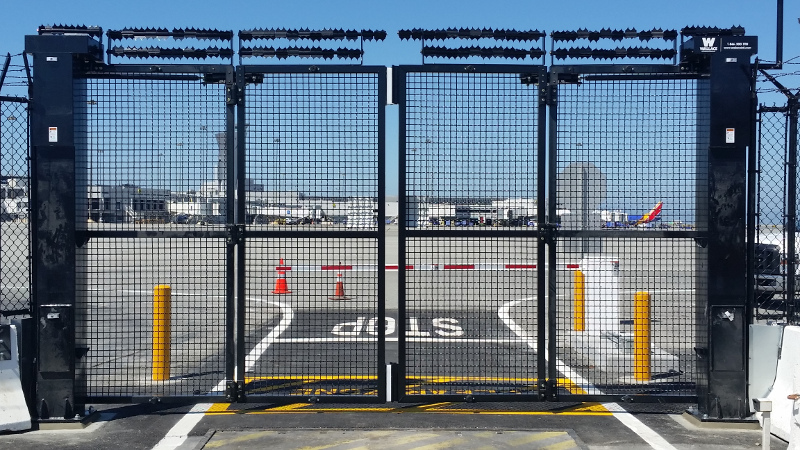

- Airports
- Seaports
- Chemical and petroleum facilities
- Water treatment facilities
- Public transportation
Options
- Tailgate detection and anti-tailgate
- Traffic lights (bi-directional)
- Uninterruptible power supply (UPS)
- Gate control stand
- Strobe light
- Detection loops
- Cold or Hot weather kit
- Pedestals
Technical Specifications
| Technical Data | PDXT Series Bi-Fold Speedgate Specifications |
|---|---|
| Max Height | 10' |
| Max Width | 23' |
| Opening Speed | 7 seconds |
| Finish | Hot dip galvanized, Powder coat options |
| Power Requirements | Voltage 208-240 V, Frequency 60 HZ, Current 20 AMP dedicated circuits, Single phase |
| Hydraulic Option | Yes |
| Battery Back-Up | Add on |
Listed to UL 325 (class 1, 2, 3 & 4)
Downloads
- PDXT Bi-Fold Speedgate - Brochure (PDF 0.5MB)
- PDXT Bi-Fold Speedgate - Specifications (Word)
- PDXT Bi-Fold Speedgate - Specifications (PDF 0.28MB)
- PDXT Bi-Fold Speedgate - Drawing (PDF 0.9MB)
- Complete Bi-Fold Speedgate Reference Manual-REV 1.5
- PDXT Series Bi-Fold Speedgate - Installation Guide
- PDXT Bi-Fold Speedgate - CAD Drawing 1 of 6 (DWG 0.7MB)
- PDXT Bi-Fold Speedgate - CAD Drawing 2 of 6 (DWG 1.2MB)
- PDXT Bi-Fold Speedgate - CAD Drawing 3 of 6 (DWG 0.4MB)
- PDXT Bi-Fold Speedgate - CAD Drawing 4 of 6 (DWG 0.6MB)
- PDXT Bi-Fold Speedgate - CAD Drawing 5 of 6 (DWG 1.8MB)
- PDXT Bi-Fold Speedgate - CAD Drawing 6 of 6 (DWG 0.4MB)
- PDXT Bi-Fold Speedgate - Installation & Maintenance Manual
- Automatic Gate Lookbook

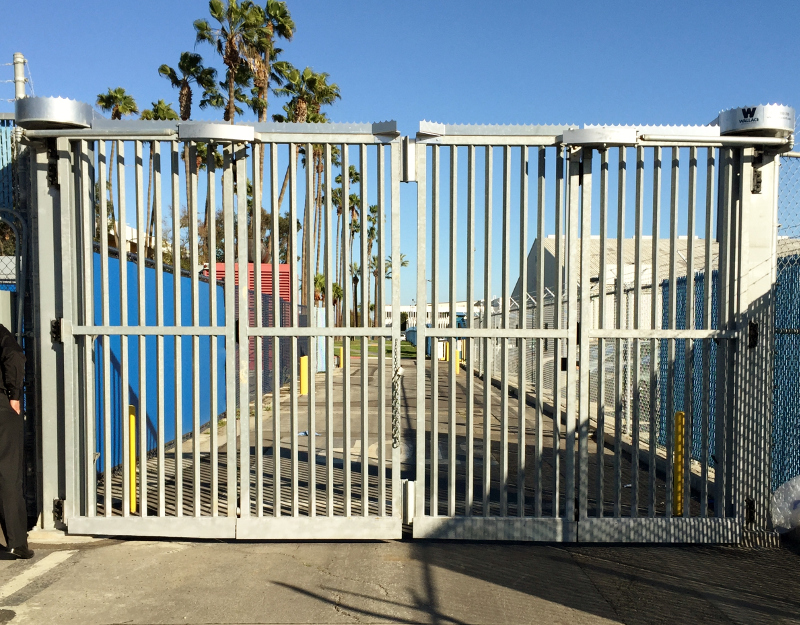

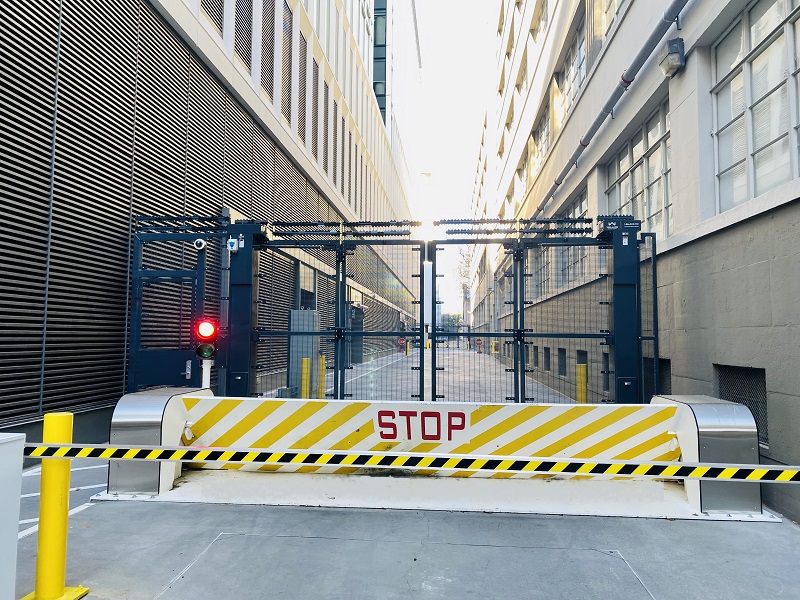

Gallery
PDXT Bi-Fold Speedgate Series Videos
PDXT vs FoldSmart
PDXT SpeedGate Open & Close Cycle
PDXT Features & Benefits
PDXT Series SpeedGate
Wallace Perimeter Security's PDXT Series SpeedGate offers unlimited head room, requires a minimal footprint, and can open up to 23' in just 7 seconds.
PDXT Series SpeedGate
Watch a full operation cycle of the PDXT Series SpeedGate.
